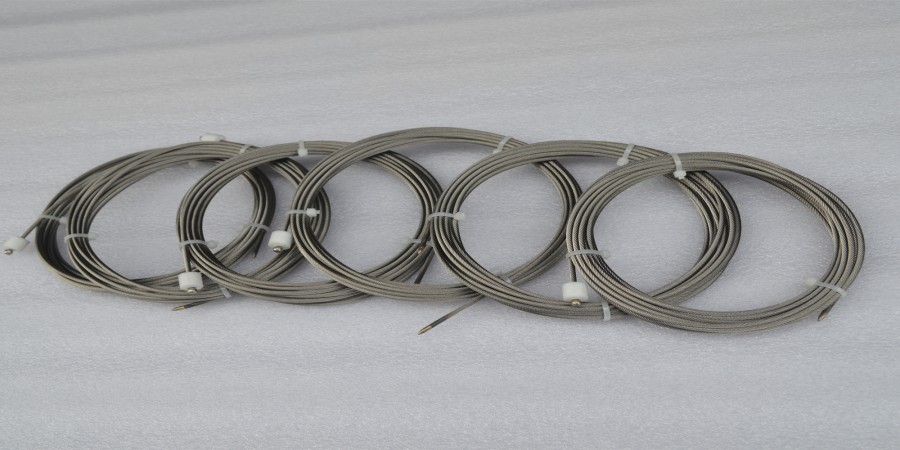

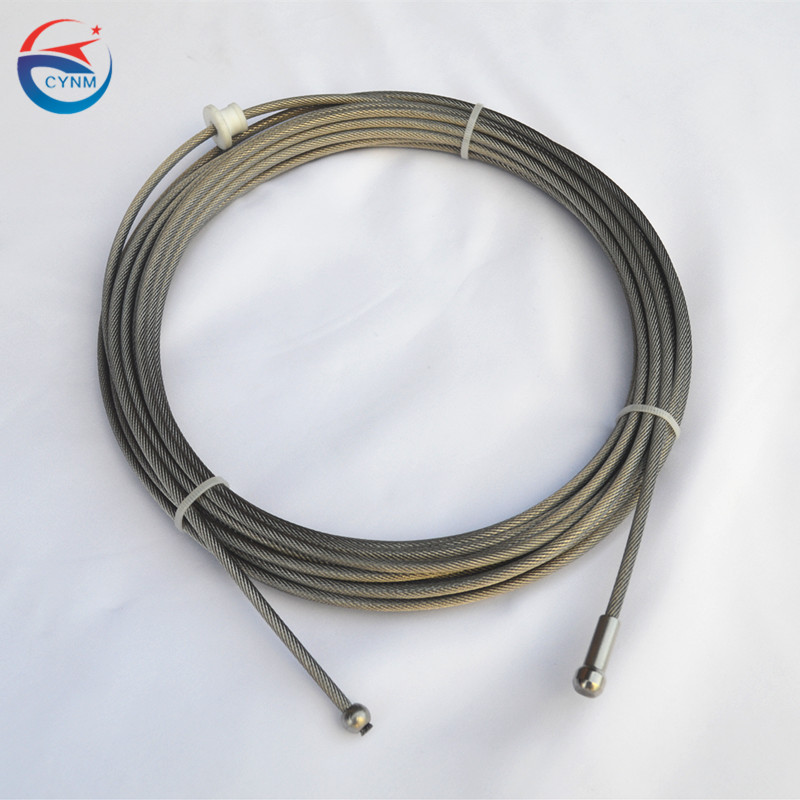

Tungsten seed cable, is also called tungsten wire rope, the CZ lifting wire rope,plays an important role in the pulling system of single crystal furnace. Tungsten seed cable--molybdenum chuck--seed holder-seed crystal rod are a whole set of hot zone in CZ system

1) Materials: W1

2) Purity: W≥99.95%

3) Structure: 19×7

4) Dimension: dia2.5×L ,dia3.0×L, dia3.5×L,dia4.0×L,dia4.5×L,dia5.0×L

5) Application: Single crystal equipment/furnace

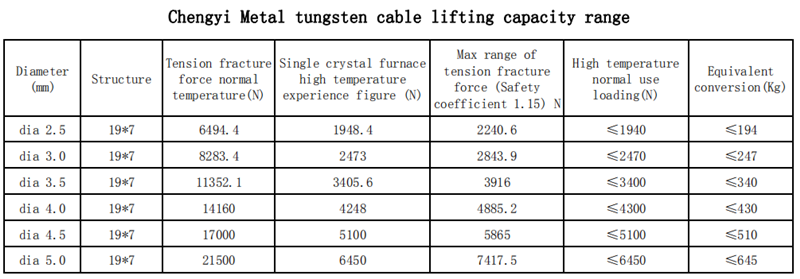

Parameters:
